0.09mm for Wirewound Resistors Copper Nickel CuNi44 Alloy Wire

Get top-quality 0.09mm Wirewound Resistors Copper Nickel CuNi44 Alloy Wire from our factory. Durable and reliable components for your electronic needs.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
CuNi44
Condition
Soft,
Size
0.09mm
Transport Package
in Spool, Carton, Wooden Case
Specification
GB/T 1234-12
Trademark
Ualloy
Origin
China
HS Code
7408290000
Production Capacity
5tons/Month

Product Description

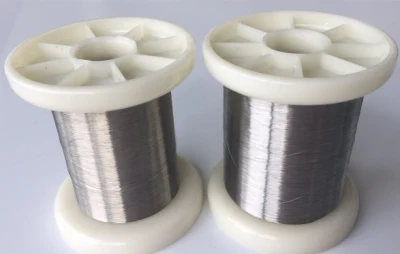

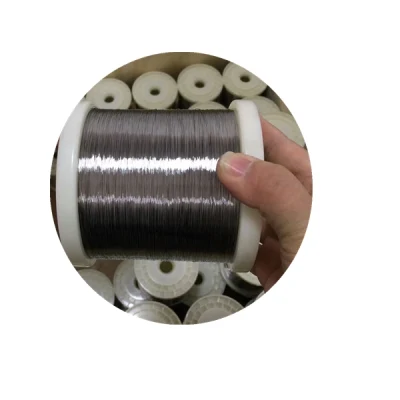

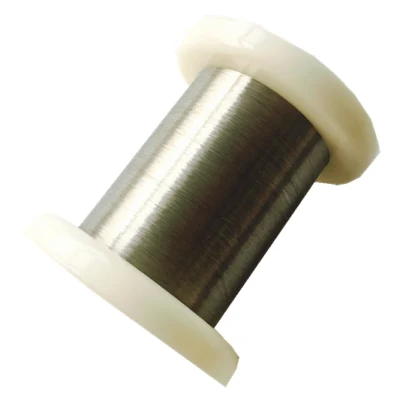

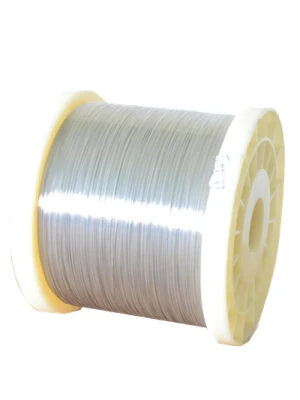

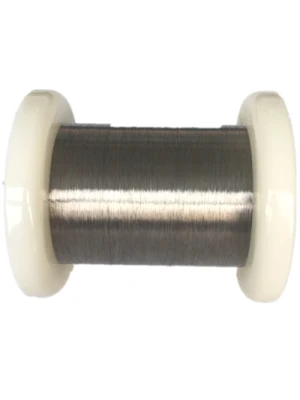

Product name:0.09mm for wirewound resistors Copper Nickel CuNi44 Alloy Wire

Conductor:CuNi44(constanstan)

Size:0.09mm

Status:Bright,soft

MOQ:5kgs

Spool size:DIN80

0.09mm for Wirewound Resistors Copper Nickel CuNi44 Alloy Wire

Grade: CuNi44,it is also called Cuprothal, Alloy 294, Cuprothal 294, Nico, MWS-294, Cupron, Copel, Alloy 45,

Neutrology, Advance, CuNi 102, Cu-Ni 44, Constantan



Chemical Content(%)

Mn

Ni

Cu

1.0

44

Bal.



 Mechanical Properties

Max Continuous Service Temp

400 ºC

Resistivity at 20ºC

0.49 ± 5% ohm*mm2/m

Density

8.9 g/cm3

Temperature Coefficient of Resistance

< -6  ×10-6/ºC

EMF VS Cu (0~100ºC)

-43 μV/ºC

Melting Point

1280 ºC

Tensile Strength

Min 420 Mpa

Elongation

Min 25%

Micrographic Structure

Austenite

Magnetic Property

Non.

Regular size:

We supply products in the shape of wire,flat wire,strip.We can also make customized material according to useris requests.

Bright and white wire--0..03mm~3mm

Oxidized wire:0.6mm~10mm

Flat wire:thickness 0.05mm~1.0mm,width 0.5mm~5.0mm

Strip:0.05mm~4.0mm,width 0.5mm~200mm

Product features:

Nice corrosion resistance, good malleability and solderability.The special low resistance can be used in many heater and resistor fields.



Application:

It could be used to make electric heating element in low-voltage apparatus, such as thermal overload relay, low-voltage circuit breaker, and so on.And used in heat exchanger or condenser tubes in evaporators of desalination plants, process industry plants, air cooling zones of thermal power plants, high-pressure feed water heaters, and sea water piping in ships.
