Diameter 24AWG chromel alumel/Nickel chrome-Nickel silicon/ type K Thermocouple bar alloy Wire  forelectric insluated cable KP KN (Type K/N/J/T/E) / copper wire

Shop our high-quality Diameter 24AWG chromel alumel/Nickel chrome-Nickel silicon/ type K Thermocouple bar alloy Wire  for electric insulated cable KP KN (Type K/N/J/T/E) / copper wire. We are a factory specializing in thermocouple wire production.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Parameters
  • Detailed Photos
  • Company Profile
  • Packaging & Shipping
  • FAQ
Overview

Basic Info.

Model NO.
K
Material Shape
Round Wire
Range of Application
Refractory
Certification
ISO9001, CE, CCC, RoHS
Brand
LIQUN
Model No.
K
Diameter
0.2-3.2mm
Positive Pole
Chromel
Negative Pole
Alumel
MOQ
100kg
Temperature Range
-270~1372
Surface
Bright/ oxidized thermocouple wire
Sample
Available
Transport Package
Coil/Roll/Plywood Cases
Specification
3.2/2.5/2.0/1.29/0.813/0.6/0.5/0.3/0.2mm
Trademark
LiQun
Origin
China
HS Code
75052200
Production Capacity
60000kg/Month

Product Description

Diameter 24AWG chromel alumel/Nickel chrome-Nickel silicon/ type K Thermocouple bar alloy Wire for electric insluated cable KP KN (Type K/N/J/T/E) / copper wire

Product Description

Type K has a better resistance to oxidation than other types of thermocouple (except type N) and is particularly recommended for oxidizing or inert atmospheres.It should not be used without protection in sulphurous atmospheres, in reducing atmospheres or a long time in a vacuum.Must be protected from sulfurous and marginally oxidizing atmospheres. Reliable and accurate at high temperatures.

Product Parameters
  1. Chemical composition and mechanical properties
Product  Chemical Composition/% Density (g/cm3) Melting point
(ºC)
Resistivity
(μΩ.cm)
Tensile Strength
(Mpa)
Ni   Cr  Si Al
          KP(+)              Nickel Chrome 90 10 - - 8.7 1427 70 >490
          KN(-)            Nickel Aluminum 96 - 1 3 8.6 1399 29 >390

2.Maximum operating temperatures
Alloy wire
Dia/mm
The long-term operating
temperatures/°C
The short-term operating
temperatures/°C
0.3 700 800
0.5 800 900
0.8,1.0 900 1000
1.2,1.6 1000 1100
2.0,2.5 1100 1200
3.2 1200 1300

3.Couple KP/KN EMF reference table (μV)
Operating
temperatures/°C
Nominal value of
thermoelectric EMF
Level I
Tolerance Range of EMF
100 4 096 ±46 4 050-4 142
200 8 138 ±44 8 094-8 182
300 12 209 ±50 12 159-12 259
400 16 397 ±68 16 329-16 465
500 20 644 ±85 20 559-20 729
600 24 905 ±102 24 803-25 007
700 29 129 ±117 29 012-29 246
800 33 275 ±131 33 144-33 406
900 37 326 ±144 37 182-37 470
1000 41 276 ±156 41 120-41 432
1100 45 119 ±167 44 952-45 286
1200 48 838 - -
1300 52 410 - -

Our production as per norm GB/T 2614-2010,ASTME230,IEC6584.For further information or special request, please contact us.

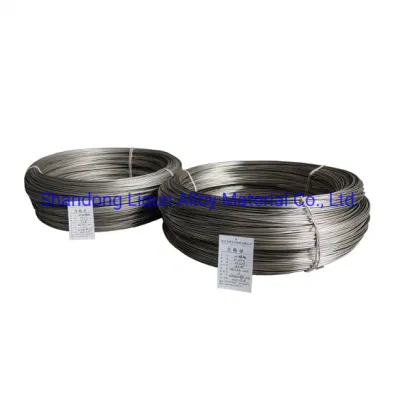

Detailed Photos

Diameter 24AWG chromel alumel/Nickel chrome-Nickel silicon/ type K Thermocouple bar alloy Wire forelectric insluated cable KP KN (Type K/N/J/T/E) / copper wireDiameter 24AWG chromel alumel/Nickel chrome-Nickel silicon/ type K Thermocouple bar alloy Wire forelectric insluated cable KP KN (Type K/N/J/T/E) / copper wireDiameter 24AWG chromel alumel/Nickel chrome-Nickel silicon/ type K Thermocouple bar alloy Wire forelectric insluated cable KP KN (Type K/N/J/T/E) / copper wire

Company Profile
Diameter 24AWG chromel alumel/Nickel chrome-Nickel silicon/ type K Thermocouple bar alloy Wire forelectric insluated cable KP KN (Type K/N/J/T/E) / copper wire
Packaging & Shipping

Diameter 24AWG chromel alumel/Nickel chrome-Nickel silicon/ type K Thermocouple bar alloy Wire forelectric insluated cable KP KN (Type K/N/J/T/E) / copper wireDiameter 24AWG chromel alumel/Nickel chrome-Nickel silicon/ type K Thermocouple bar alloy Wire forelectric insluated cable KP KN (Type K/N/J/T/E) / copper wireDiameter 24AWG chromel alumel/Nickel chrome-Nickel silicon/ type K Thermocouple bar alloy Wire forelectric insluated cable KP KN (Type K/N/J/T/E) / copper wire


FAQ
Q1.What is the nature of the company?
A: We are a production enterprise, our company has its own factory.

Q2. What is the MOQ of an order of your company?
A: Our company's MOQ is 100 kg for each type of product.

Q3.Can I get a sample before mass production ?
A: Sample is free,the shipping cost of the sample is paid by the customer .

Q4.How long is the mass production cycle of product?
We will end the production within 15-20 days after receiving the deposit.

Q5.What payment method does your company support?
A: We can accept T/T, L/C ,you can choose the one which the most convenient or most effective for you .
