Factory Outlet Ernicr-3 2.5mm TIG Nickel-Based Alloy Steel Solid Copper Wire Gas Shield Gtaw Solid Wire

Discover high-quality Ernicr-3 2.5mm TIG Nickel-Based Alloy Steel Solid Copper Wire at our factory outlet. Perfect for gas shield GTAW solid wire welding. Shop now!
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Detailed Photos
  • Certifications
  • Company Profile
  • Packaging & Shipping
  • FAQ
Overview

Basic Info.

Model NO.
Nickel Wire
Slag Characteristic
Acidic
Extended Length
10-20mm
Chemical Composition
Ernicr 3/Ernicr-4
MOQ
1kg
Surface
Bright
Density
8.908 G/Cm³
Resistance
0.096
Melting Point
1435-1446
Treatment
Hydrogen Annealing
Elongation
35%
Ultimate Strength
462MPa
Transport Package
Spool+Carton Box
Specification
0.025-8mm
Trademark
DLX
Origin
Changzhou, Jiangsu, China
HS Code
7506100000
Production Capacity
1000kg Per Week

Packaging & Delivery

Package Size
10.00cm * 10.00cm * 10.00cm
Package Gross Weight
1.000kg

Product Description

1.2mm Nickel base flux cored MIG welding wire ERNi-1 for Ni200 Ni201

ERNiCr-3 (Alloy 82) is used for welding Inconel alloy 600 and Incoloy 800, overlaying on steel and various dissimilar metal welding applications. Weld processes which can be used include GTAW, GMAW and ASAW. Suitable Flux May Be Used. Suitable Flux May Be Used.

Weling series:
ERNiCrMo-3,ERNiCrMo-4,ERNiCrMo-13,ERNiCrFe-3,ERNiCrFe-7,ERNiCr-3,ERNiCu-7,ERNiCu-7,ERNi-1

Standard: Conforms to Certification AWS A5.14 ASME SFA A5.14

Size: 0.8MM / 1.0MM / 1.2MM / 1.6MM / 2.4MM / 3.2MM / 3.8MM / 4.0MM / 5.0MM

Form: MIG(15kgs/spool), TIG(5kgs/box),Strip




Type
Standard
Manin chemcial composition %
Typical application
Nickel welding wire
A5.14 ERNi-1
Ni ≥ 93 Ti3 Al1 Cr-- Mo--
ERNi-1 is used for GMAW, GTAW and ASAW welding of Nickel 200 and 201, joining these alloys to stainless and carbon steels, and
other nickel and copper-nickel base metals. Also used for overlaying steel.
NiCuwelding wire
A5.14
ERNiCu-7
Ni 65 Cr-- Mo-- Ti2 Other: Cu
ERNiCu-7 is a copper-nickel alloy base wire for GMAW and GTAW welding of Monel alloys 400 and 404. Also used for overlaying steel
after first applying Layer of 610 nickel.
CuNi welding wire
A5.7
ERCuNi
Ni 30 Cr-- Mo-- Other: Cu
ERCuNi is used for gas metal and gas tungsten arc welding. Can also be used by oxy-fuel welding of 70/30, 80/20, and 90/10 copper
nickel alloys. A barrier layer of nickel alloy 610 is recommended prior to overlaying steel with GMAW weld process.
NiCr
welding wire
A5.14
ERNiCrFe-3
Ni≥ 67 Cr 20 Mo--- Mn3 Nb2.5 Fe2
Type ENiCrFe-3 electrodes are used for welding of nickel-chromium-iron alloys to themselves and for dissimilar welding between
nickel-chromium-iron alloys and steels or stainless steels.
A5.14
ERNiCrFe-7
Ni: Rest Cr 30 Fe 9
Type ERNiCrFe-7 is used for gas-tungsten-arc and gas-metal-arc welding of INCONEL 690.
NiCrMo welding wire
A5.14
ERNiCrMo-3
Ni≥ 58 Cr 21 Mo 9 Nb3.5 Fe ≤1.0
ERNiCrMo-3 is used primarily for gas tungsten and gas metal arc and matching composition base metals. It is also used for welding
Inconel 601 and Incoloy 800. It can be used to weld dissimilar metal combinations such as steel, stainless steel, Inconel and
Incoloy alloys.
A5.14
ERNiCrMo-4
Ni Rest Cr 16 Mo 16 W3.7
ERNiCrMo-4 is used for welding nickel-chromium-molybdenum base materials to itself, steel and other nickel base alloys and for
cladding steel.
A5.14
ERNiCrMo-10
Ni Rest Cr 21 Mo 14 W3.2 Fe 2.5
ERNiCrMo-10 is used for welding nickel-chromium-molybdenum base materials to themselves, steel and other nickel base alloys, and
for cladding steels. Can be used to weld duplex, super duplex stainless steels.
A5.14
ERNiCrMo-14
Ni Rest Cr 21 Mo 16 W3.7
ERNiCrMo-14 is used for gas-tungsten-arc and gas-metal-arc welding of duplex, super-duplex and super-austenitic stainless steels,
as well as nickel alloys such as UNS N06059 and N06022, INCONEL alloy C-276, and INCONEL alloys 22, 625, and 686.

Factory Outlet Ernicr-3 2.5mm TIG Nickel-Based Alloy Steel Solid Copper Wire Gas Shield Gtaw Solid Wire

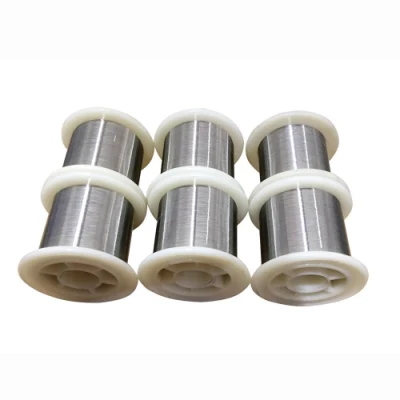

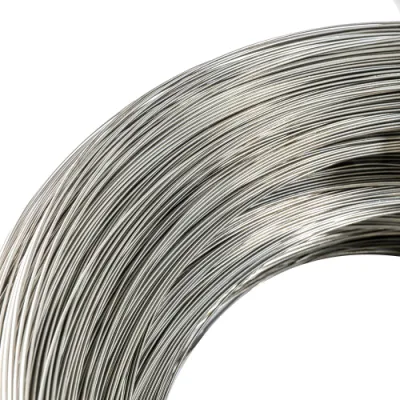

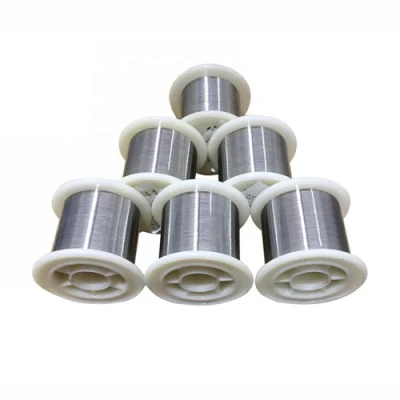

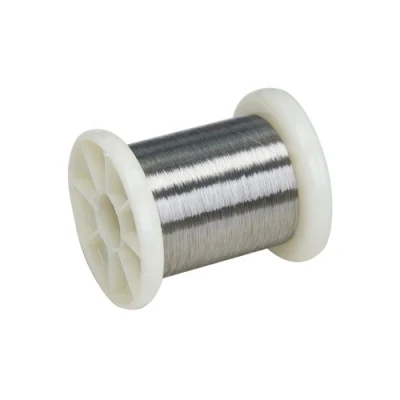

Detailed Photos

Factory Outlet Ernicr-3 2.5mm TIG Nickel-Based Alloy Steel Solid Copper Wire Gas Shield Gtaw Solid WireFactory Outlet Ernicr-3 2.5mm TIG Nickel-Based Alloy Steel Solid Copper Wire Gas Shield Gtaw Solid WireFactory Outlet Ernicr-3 2.5mm TIG Nickel-Based Alloy Steel Solid Copper Wire Gas Shield Gtaw Solid WireFactory Outlet Ernicr-3 2.5mm TIG Nickel-Based Alloy Steel Solid Copper Wire Gas Shield Gtaw Solid WireFactory Outlet Ernicr-3 2.5mm TIG Nickel-Based Alloy Steel Solid Copper Wire Gas Shield Gtaw Solid WireFactory Outlet Ernicr-3 2.5mm TIG Nickel-Based Alloy Steel Solid Copper Wire Gas Shield Gtaw Solid Wire

Certifications



Factory Outlet Ernicr-3 2.5mm TIG Nickel-Based Alloy Steel Solid Copper Wire Gas Shield Gtaw Solid Wire
Factory Outlet Ernicr-3 2.5mm TIG Nickel-Based Alloy Steel Solid Copper Wire Gas Shield Gtaw Solid Wire
Factory Outlet Ernicr-3 2.5mm TIG Nickel-Based Alloy Steel Solid Copper Wire Gas Shield Gtaw Solid Wire
Factory Outlet Ernicr-3 2.5mm TIG Nickel-Based Alloy Steel Solid Copper Wire Gas Shield Gtaw Solid Wire



Company Profile

Our company Principle is  " Quality first, Customer first".
CHANGZHOU DLX ALLOY CO, LTD was established in 2002 and has got Iso9001 International Quality Management System Certificate and SGS Certificate. Our factory is professional in researching and producing special alloy material. From melting, drawing, heat treatment, finishing and testing .We offer nickel-based, copper-based, and iron-based alloys, including super alloy, welding materials, anti-corrosion alloy, precision alloy, FeCrAl alloy, NiCr alloy, CuNi alloy, thermocouple and etc, in the form of wire, strip, ribbon, bar, tube, plate.

Factory Outlet Ernicr-3 2.5mm TIG Nickel-Based Alloy Steel Solid Copper Wire Gas Shield Gtaw Solid Wire

Factory Outlet Ernicr-3 2.5mm TIG Nickel-Based Alloy Steel Solid Copper Wire Gas Shield Gtaw Solid Wire
Factory Outlet Ernicr-3 2.5mm TIG Nickel-Based Alloy Steel Solid Copper Wire Gas Shield Gtaw Solid Wire

Factory Outlet Ernicr-3 2.5mm TIG Nickel-Based Alloy Steel Solid Copper Wire Gas Shield Gtaw Solid Wire
Factory Outlet Ernicr-3 2.5mm TIG Nickel-Based Alloy Steel Solid Copper Wire Gas Shield Gtaw Solid Wire
Factory Outlet Ernicr-3 2.5mm TIG Nickel-Based Alloy Steel Solid Copper Wire Gas Shield Gtaw Solid Wire
Factory Outlet Ernicr-3 2.5mm TIG Nickel-Based Alloy Steel Solid Copper Wire Gas Shield Gtaw Solid Wire

1, We're able to design and develop the product what our customers require and meet their requirements through providing the appropriate engineering drawings or samples.
2, We can provide the products within a week after payment.
3, Wecan provide sample of the products customer need.
4, We always insist on "
Quality first, Customer first
" as our business philosophy.

Packaging & Shipping
Factory Outlet Ernicr-3 2.5mm TIG Nickel-Based Alloy Steel Solid Copper Wire Gas Shield Gtaw Solid Wire
Factory Outlet Ernicr-3 2.5mm TIG Nickel-Based Alloy Steel Solid Copper Wire Gas Shield Gtaw Solid Wire




Factory Outlet Ernicr-3 2.5mm TIG Nickel-Based Alloy Steel Solid Copper Wire Gas Shield Gtaw Solid Wire

FAQ

Question: Are you a trading company or manufacturer?
Answer: We're manufacturer.

Question2:  Could you help to design the product?
Answer:  Yes, we have excellent R&D team, OEM/ODM orders are all welcome.

Question: Could you supply samples?
Answer: Yes, wecould supply samples according to your requirement.

Question: could we visit your factory?
Answer: Sure, factory visit is warmly welcome.

Contact us

Please feel free to give your inquiry in the form below We will reply you in 24 hours
