High Loading Factory Price Concrete Slab Formwork Ringlock Scaffolding System Material From Auto Welding Manufacture

Auto Welding Manufacture offers high-quality concrete slab formwork ringlock scaffolding system at competitive factory prices. Trust the experts for your construction needs.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Application
Steel Workshop, Steel Structure Platform, Steel Fabricated House, Structural Roofing, Steel Walkway and Floor, Steel Structure Bridge
Service
OEM Service as Well
Model
Scaffolding
Lapping Form
Full Scaffolding
Construction Properties
Building Scaffold
Steel Model
Q235/Q345
Size
Standard Size or Customized
Erection Position
External Scaffolding
Move Method
Horizontal Mobile Scaffolding
Scaffolding Part Type
Ringlock Scaffolding
Length
800-6000mm
Transport Package
in Bulk
Specification
48mm tube
Origin
China
HS Code
7308400000
Production Capacity
300containers/Month

Product Description

Product Description

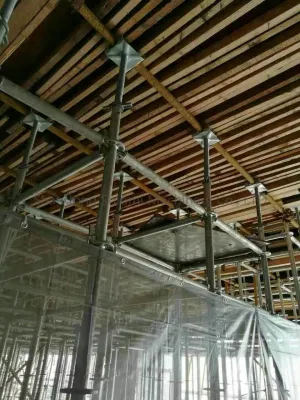

   Ringlock systems consists of standard ,leger,diagonal,brace,screw jack base, and top brace .safe and convenient to operate,fast to assemble and dismantle,widely used in construction .Such as formwork support,exteriortirm constrction etc.

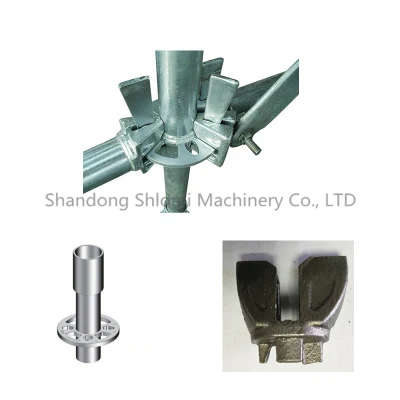

Ringlock scaffolding system is the most advanced all round wedge lock type scaffolding system. This type of scaffolding system consists of scaffolding standards with ring every 0.5m and scaffolding horizontal with ledger end. When connected together, the Ledger end and scaffold ring create a very strong connection. It is easy to assembly and dismantle by just one person at any height.

High Loading Factory Price Concrete Slab Formwork Ringlock Scaffolding System Material From Auto Welding Manufacture

Product Description Material

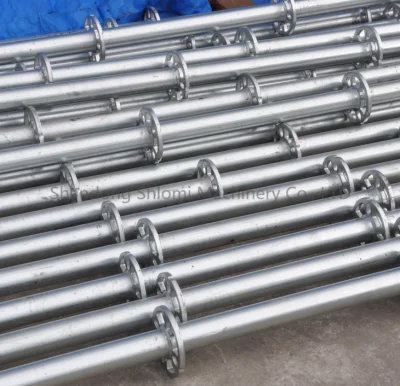

Standard(Vertical) 0.5m Q345 OD48.3x3.2mm
1.0m Q345 OD48.3x3.2mm
1.5m Q345 OD48.3x3.2mm
2.0m Q345 OD48.3x3.2mm
2.5m Q345 OD48.3x3.2mm
3m Q345 OD48.3x3.2mm
4m Q345 OD48.3x3.2mm
Ledger(Horizontal) 0.65m/2' 2'' Q345 OD48.3x3.0mm
0.88m/2' 10'' Q345 OD48.3x3.0mm
0.92m/3' Q345 OD48.3x3.0mm
1.07m/3' 6'' Q345 OD48.3x3.0mm
1.15m/3'10'' Q345 OD48.3x3.0mm
1.57m/5'2'' Q345 OD48.3x3.0mm
1.83m/6' Q345 OD48.3x3.0mm
2.13m/7' Q345 OD48.3x3.0mm
2.44m/8' Q345 OD48.3x3.0mm
3.05m/10' Q345 OD48.3x3.0mm
Brace(Diagonal) 0.65x2m Q235 OD48.3x2.5mm
0.88x2m Q235 OD48.3x2.5mm
0.92x2m Q235 OD48.3x2.5mm
1.07x2m Q235 OD48.3x2.5mm
1.15x2m Q235 OD48.3x2.5mm
1.57x2m Q235 OD48.3x2.5mm
1.83x2m Q235 OD48.3x2.5mm
2.13x2m Q235 OD48.3x2.5mm
2.44x2m Q235 OD48.3x2.5mm
3.05x2m Q235 OD48.3x2.5mm


1. The ringlock scaffolding is simple structure, quik insallation, easy application, (insert rode pin into the approprite adjustable hole, turn the thread spanner to adjusting hole, turn the thread sppanner to adjust height)
2. High loading capacity and constraction efficiency
3. Widly used for architecture, tunnel, metroand other construction engineering

Basic Components: Standard, Ledger, Diagonal Brace, Brindging Ledger, U head Jack, Base Jack, Base Collar,

High Loading Factory Price Concrete Slab Formwork Ringlock Scaffolding System Material From Auto Welding Manufacture
High Loading Factory Price Concrete Slab Formwork Ringlock Scaffolding System Material From Auto Welding Manufacture

High Loading Factory Price Concrete Slab Formwork Ringlock Scaffolding System Material From Auto Welding Manufacture



Shandong Shlomi Machinery Co., Ltd. is specializes in Scaffolding Accessories & Formwork Parts including the Formwork casted or forged Wing Nut, anchor nut, swivel nut, washer plate,Formwork steel Clamp, Tie Rod, Water Stop, pin, hex nut, BFD Clamp Ringlock Scaffolding, Shoring Frame, Shoring Prop, Push Pull prop, Base Jack, Fork Head Jack, Tripod, Scaffolding Coupler, Adjustable Screw Jack, and other OEM custom products.

Our products are engineered for safety, strength and flexibility to meet international standards .In terms of working processes, we have expertise in iron casting, steel forging and thread rolling. We are confident that our quality is on par with other world-leading brands. we have exported our products to Thailand, Singapore, Philippines, Malaysia, Dubai, South Africa, Spain, Indonesia, Russia, Turkey, France Colombia ect. We successfully make use of our experience and the techniques into their local civil engineering projects.

We have advanced technology and many automatic production lines. In addition, we also equip the pressure test machine, Tensile strength tester, Chemical analysis equipment, Metallographic equipments and so on. So that we can make sure our production are all-qualified. With strict quality control, we passed the factory Auditing ISO 9001:2015 and SGS certificate.

With our technical knowledge, ready-to-ship inventory and full-service solution, we are able to serve customers with confidence and enthusiasm. Any enquiry shall be welcomed. Please contact us for more details. Shandong Shlomi Machinery Co., Ltd. welcome friends all over the world !Looking forward to work with you!

Any enquiry shall be welcomed. Please contact us for more details. Shandong Shlomi Machinery Co., Ltd. welcome friends all over the world !Looking forward to work with you!
