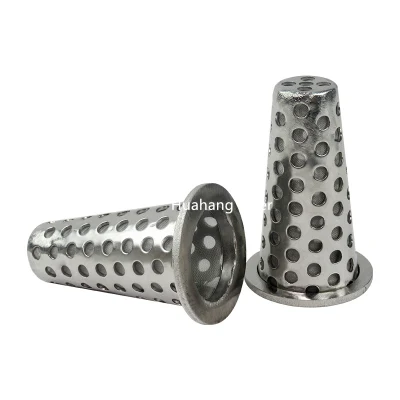

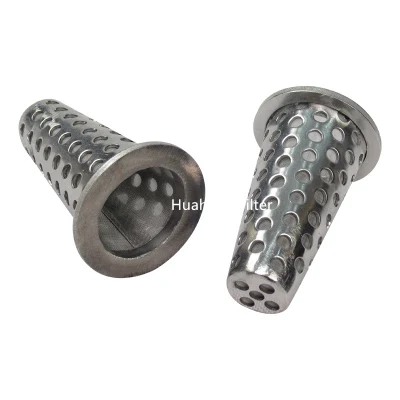

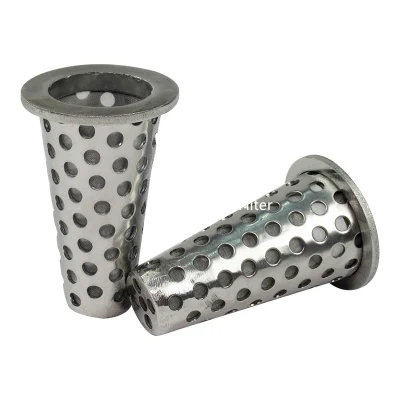

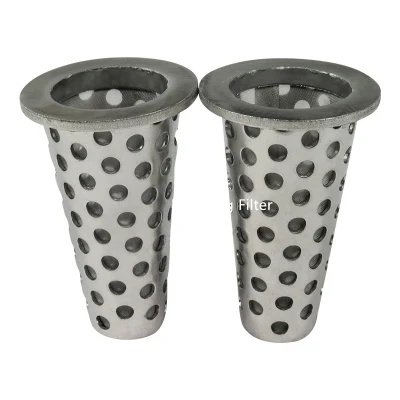

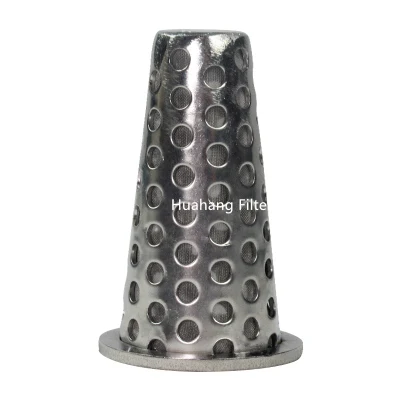

Huahang micron filter tube 5 10 15 micron stainless steel wire mesh perforated cylinder/ 3/4 screen tube drum filter stainless steel basket strainer

Discover the high-quality Huahang micron filter tube and stainless steel wire mesh cylinder at our factory. Choose from 5, 10, or 15 micron options for effective filtration.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Company Profile
  • Main products
  • Packaging & Shipping
  • FAQ
Overview

Basic Info.

Model NO.
stainless steel basket strainer
Filtration Grade
PRE Filter
Item
stainless steel basket filter
Media
SS304, SS316, SS304L, SS316L
Structure
Punching Mesh/Single-Layer Mesh/Composite Mesh
Support mesh
Custom made
Handle
Yes or as request
Custom made
Accept
Micron
180um, 120um, 100um, etc.
Direct factory
Yes
Production draft
Pot welding, etc
condition
new
product material
stainless steel 304/316/carbon steel
function
liquid filtration
application area
industry, water treatment plant
size
customize
features
high strength, washable
Transport Package
Carton or Wooden Box for Larger Quantity
Specification
OD36x62mm
Trademark
HUAHANG
Origin
China
HS Code
8421999090
Production Capacity
3000PCS /Month

Packaging & Delivery

Package Size
15.00cm * 8.00cm * 10.00cm
Package Gross Weight
0.800kg

Product Description

Huahang micron filter tube 5 10 15 micron stainless steel wire mesh perforated cylinder/ 3/4 screen tube drum filter stainless steel basket strainer
Product Description

The basket filter stainer  is generally named after the handle is installed on the flange. The style is generally welded to the flange of the stainless steel filter cylinder, and the handle is welded on the flange to facilitate replacement.
The basket filter is generally divided into two types, flat and oblique, which are mainly used in the basket filter.

From the point of view of the filtering method, it can be generally divided into two types: internal in and out and out in and out. According to the specifications and parameters, the basket filter is selected. This is the most important link because it is actually In production, the loss of waste and energy is invisible, which increases the cost and causes the price of the product to increase. Therefore, it is necessary to select raw materials, improve the production skills of production employees, and reduce costs.
The inclined-type basket filter must be pre-measured according to the size and specifications during production and processing in order to determine the size of the blanking. At the same time, the flange must be carefully cut and welded when welding. Welding, to avoid damage.

Specifications
Item Descriptions Remark
Type stainless steel basket filter element
Material SS 304 or SS 316  Custom made
End caps SS 304 or SS 316 Custom made
Sizes Custom made Custom made
Handle Welding  by argon arc welding
O-ring high temperature 400 degree Custom made
Structure Pleated SS wire mesh
Direct factory Yes,more than 15 years filter line experiences
Sample Available

Huahang micron filter tube 5 10 15 micron stainless steel wire mesh perforated cylinder/ 3/4 screen tube drum filter stainless steel basket strainer Huahang micron filter tube 5 10 15 micron stainless steel wire mesh perforated cylinder/ 3/4 screen tube drum filter stainless steel basket strainer
Huahang micron filter tube 5 10 15 micron stainless steel wire mesh perforated cylinder/ 3/4 screen tube drum filter stainless steel basket strainer
Basket filter stainer construction

The basket filter consists of the connecting pipe,main pipe,filter basket,flange,flange cover and fasteners.

When the liquid comes into the filter basket through the main pipe,the particle impurities will be trapped in the basket.The clean fluid will through the filter basket and be discharged from the outlet.When it needs to be cleaned,open the screw plug at the bottom of the main pipe rotationally,drain out the fluid.Remove the flange cover,the basket can be put in the main pipe for reuse again.So the use and the maintenance is super convenient.

Basket filter strainer characteristics

1. Shell material: Carbon steel or stainless steel 201/304/316
2. Filter material: stainless steel
3. Sealing material: NBR, VITON
4. DN: 25-300mm
5. Pressure: 1.0Mpa, 1.6Mpa
6. Filter accuracy: 10-300mesh

Technical Parameters for basket filter strainer

1,Working temperature:≤95ºC;
3,Nominal diameter:DN15-DN600;
4,Nominal pressure:PN0.6-2.5Mpa;
5,Filtration precision:50um-8000um
6,Material of housing:Q235B,304,304,316,316L;
7,Material of seal:PTFE/Rubber;
8,Form of inlet/outlet:Flange/Inner wire/Outer wire/Quick installation
9,Form of cover compression:Bolt/Quick bolt
10,Suitable viscosity(cp):1-30000
11,Form of basket:Punching mesh/Single-layer mesh/Composite mesh



Application for Basket filter strainer

1.Petroleum
2.chemical
3.food&beverage
4.water treatment

Maintainance for Baskte filter strainer
  • The key part of this kind of the filter is the filter core.The filter core consists of the filter frame and stainless steel wire mesh.The SS wire mesh belongs to the wear parts.It needs a special protection.
  • After the filter has worked for some time,it will precipitates a certain amount of the impurities in the filter core.Then the pressure will be increased and the flow speed will be reduced.So we should clean the impurities in the filter core in time.
  • When we clean the impurities,we should be careful to assure the SS wire mesh in the filter core will not be deformed or damaged.Otherwise,when you reuse the filter,the impurities of the filtered liquid will not reach to the designed requirement.And the compressors,pump or the instruments will be destroyed.
  • Once the SS wire mesh has been found to be deformed or damaged,we should replace it immediately.
Company Profile

Huahang micron filter tube 5 10 15 micron stainless steel wire mesh perforated cylinder/ 3/4 screen tube drum filter stainless steel basket strainerXinxiang City Huahang Filter Co., Ltd. is a professional industrial filter manufacturer integrating design, production and marketing. With strong technical force, perfect testing means, and excellent after-sales service, we provide users with a variety of high-quality products.
Our main products include hydraulic filters, air filters and pipe filters. Products are widely used in petroleum, chemical and metallurgical machinery, textile,  automobile, chemical fiber, and air-conditioning.
"Quality first, customer first" is our business objective. We will, as always, offer new and old customers
Huahang micron filter tube 5 10 15 micron stainless steel wire mesh perforated cylinder/ 3/4 screen tube drum filter stainless steel basket strainerHuahang micron filter tube 5 10 15 micron stainless steel wire mesh perforated cylinder/ 3/4 screen tube drum filter stainless steel basket strainer



Main products

Huahang micron filter tube 5 10 15 micron stainless steel wire mesh perforated cylinder/ 3/4 screen tube drum filter stainless steel basket strainerHuahang micron filter tube 5 10 15 micron stainless steel wire mesh perforated cylinder/ 3/4 screen tube drum filter stainless steel basket strainerHuahang micron filter tube 5 10 15 micron stainless steel wire mesh perforated cylinder/ 3/4 screen tube drum filter stainless steel basket strainerHuahang micron filter tube 5 10 15 micron stainless steel wire mesh perforated cylinder/ 3/4 screen tube drum filter stainless steel basket strainer Huahang micron filter tube 5 10 15 micron stainless steel wire mesh perforated cylinder/ 3/4 screen tube drum filter stainless steel basket strainer
Packaging & Shipping

Huahang micron filter tube 5 10 15 micron stainless steel wire mesh perforated cylinder/ 3/4 screen tube drum filter stainless steel basket strainerShipping
1. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
2. Customers specifying freight forwarders or negotiable shipping methods!
Delivery time
7-10 days for payment ; 12-15 days for batch goods


FAQ

1. who are we?
We are based in Henan, China, start from 2003,sell to North America(29.00%),Central America(15.00%),Northern Europe(10.00%),Southern Europe(9.00%),Western Europe(7.00%),South Asia(6.00%),South America(6.00%),Domestic Market(5.00%),Southeast Asia(5.00%),Eastern Europe(4.00%),Eastern Asia(1.00%),Oceania(1.00%),Africa(1.00%),Mid East(1.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Hydraulic Oil Filter; Air Filter Cartridge; Sintered Filter; Water Filter Cartridge; Coalescer And Separator

4. why should you buy from us not from other suppliers?
Founded in 2003, Filtration and Separation Industry Association member units, advanced technology, well-equipped, reliable quality and excellent service. Currently leading products include hydraulic filters, air filters, pipe filters, water filters series.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW;
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union;
Language Spoken:English,Chinese
